Electrical Transducers

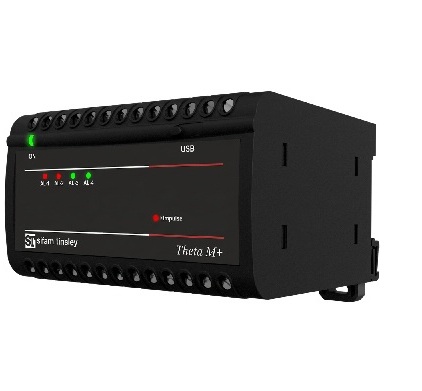

Theta Mplus
The THETA M transducer measures and converts electrical parameters in 3-phase (3W/4W) AC systems—both balanced and unbalanced—into standard analog signals. It also provides relay outputs for limit monitoring and pulse output for tracking 3-phase energy consumption.
Special Features:
- True RMS measurement for accurate readings
- Programmable PT/CT ratios and parameters (via RS-485/USB with eCon software)
- THD measurement and phase sequence detection
- Configurable analog outputs (0–20 mA / 4–20 mA / ±20 mA)
- Relay outputs for alarm signaling and pulse output for energy monitoring
- Easy DIN rail, wall, or panel mounting
- Screw-type connection terminals for secure wiring
