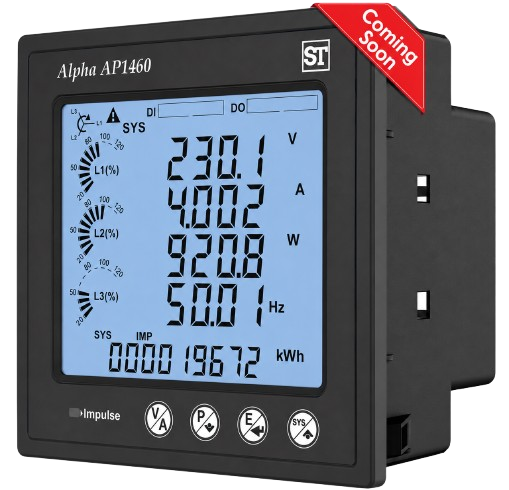

Alpha AP1460

The Alpha AP1460 is a multifunction power and energy meter designed for comprehensive monitoring of single-phase and three-phase electrical networks. It supports multiple wiring configurations, including 3Ø-4W, 3Ø-3W, 2Ø-2W, 1Ø-3W, and 1Ø-2W, and provides simultaneous display of key electrical parameters. The meter accurately measures voltage, current, power, frequency, power factor, active, reactive, apparent, and quadrant-wise energy, making it ideal for energy management and power monitoring applications. It also features optional digital inputs and outputs for pulse counting, alarms, tariff-based energy accumulation, and external status monitoring.

Special Features:

• Prepaid Cost-Based Energy Tripping for effective energy control.
• Three-Phase Load Health Monitoring for improved system reliability.
• Energy Accuracy compliant with IEC 62053 and IEC 61557-12 (Edition 2.0).
• THD and Individual Harmonics Measurement for detailed power quality analysis.
• 8 MB Flash Data Logging for historical data storage and analysis.
• Dual Digital Inputs for pulse counting, tariff energy accumulation, and status monitoring.
• Dual Programmable Digital Outputs configurable as pulse or alarm outputs with adjustable pulse width and duration.
