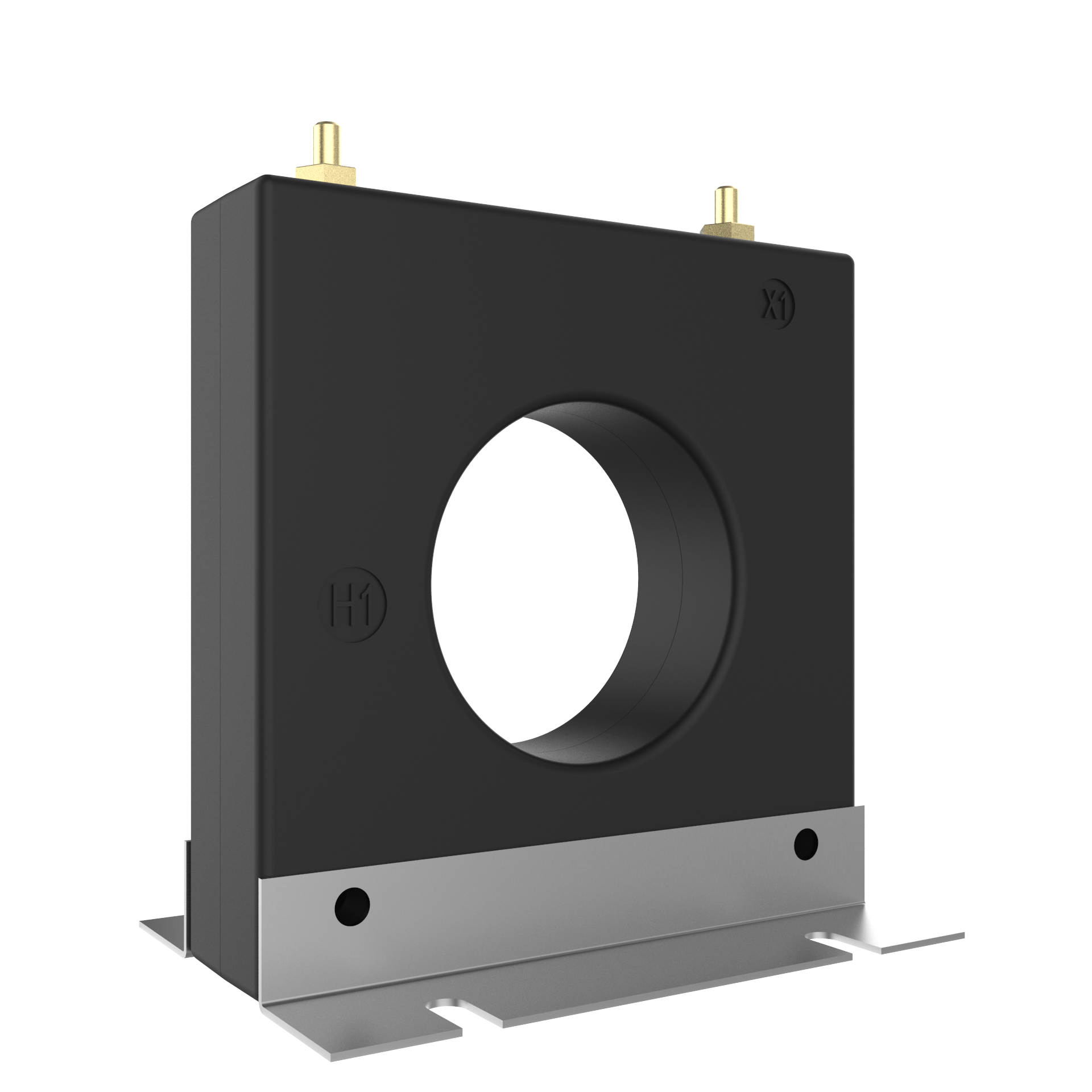

ANSI Current Transformers
6ASFT 6ASHT 6ARL
The ANSI Metering Class current transformers are intended for power monitoring applications where high accuracy and minimum phase angle error are required. They are specially designed to be compliant with relevant ANSI standards.
Special Features:
- Applicable Standard : ANSI/IEEE C57.13
- Case : 10% glass filled polycarbonate, Flame retardant grades classified UL 94V-0.
- Flexible leads are UL 1015, 105oC 16AWG.
- Frequency : 50-400 Hz.
- Insulation Level : 10KV BIL
- Non-standard length to be specified.
- For all the SHT & SFT types terminals are brass studs No. 8-32 with one Flat washer, lock washer & regular nut.
