Electrical Transducers

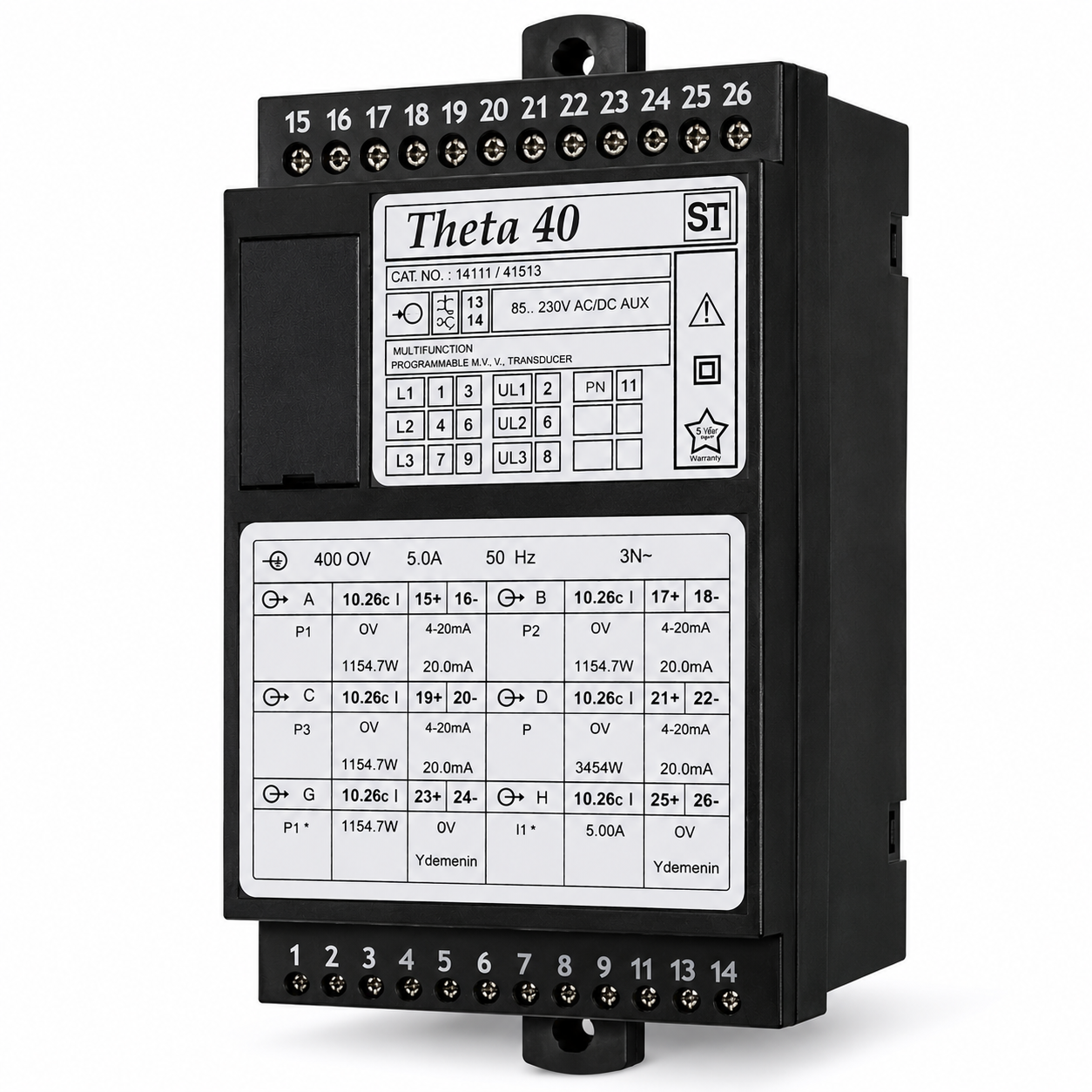

Theta 40
Theta 40 is a multi-transducer designed to simultaneously measure multiple electrical power-system parameters and convert them into 2, 3, or 4 analogue output signals, with optional digital outputs for limit indication and power metering.
Special Features
- Measures multiple heavy-current power-system variables
- Supports up to 6 outputs: 2A+4D, 4A+2D, 2A+3D, or 3A
- Input voltage up to 693 V AC (phase-to-phase)
- Universal, programmable analogue outputs
- High accuracy: Voltage 0.2%, Frequency 0.15%, Power 0.25%
- Universal digital outputs for metering and limit indication
- Universal AC/DC power supply: 24–80 V or 85–230 V
- Windows software for programming, data acquisition, settings, and power-system status simulation
